THE ONLY ADVENTURE GEAR BUILT FORD TOUGH®.
Built Ford Tough® is the durable foundation of Ford pickups. Now the lineup is made even more formidable with the all-new Ranger, tested under more extreme conditions than you would ever likely encounter. Set a date for your next adventure. Your Ranger is ready to get you there!

Highlights

Engine Highlights
Available Engines 2.3L Ti-VCT I-4
Horsepower 270
Torque 310
Auto Start/Stop Technology Standard
Fuel Consumption Ranger 4x2: 21 City/ 26 Hwy/ 23 Combined
Ranger 4x4: 20 City/ 24 Hwy/ 22 Combined
Vehicle Capacity Highlights
Available Cab Types SuperCab SuperCab SuperCrew® SuperCrew®
Drive Type 4x2 4x4 4x2 4x4
Max Seating Capacity 4 4 5 5
Wheelbase 126.8 in. 126.8 in. 126.8 in. 126.8 in.
Maximum Conventional Towing (When properly configured) 7500 lbs. 7500 lbs. 7500 lbs. 7500 lbs.
Maximum Payload (When properly configured) 1860 lbs. 1650 lbs. 1770 lbs 1560 lbs.
Min Vehicle Base Curb Weight 4145 lbs. 4354 lbs. 4232 lbs. 4441 lbs.
Trim Highlights
Available Trims XL
XLT
LARIAT
Transmission - 10-Speed SelectShift® Automatic Standard
Available Drive Types 4x2
4x4
Warranties
Time Distance
Warranty - Bumper to Bumper 3 years 36,000 miles
Warranty - Powertrain 5 years 60,000 miles
Warranty - Safety Restraint System 5 years 60,000 miles
Warranty - Aluminum Body Panels 5 years Unlimited miles
Warranty - Corrosion - Sheet Metal (Perforation Only Excluding Aluminum) 5 years Unlimited miles
Warranty - Paint Adhesion 5 years Unlimited miles
Warranty - Roadside Assistance Program 5 years 60,000 miles

Exterior

Exterior Dimensions - Cab
Cab style SuperCab SuperCrew®
Pickup box style 6 ft. Styleside 5 ft. Styleside
Drive system 4x2 4x4 4x2 4x4
Wheelbase 126.8 in. 126.8 in. 126.8 in. 126.8 in.
Overall length 210.8 in. 210.8 in. 210.8 in. 210.8 in.
Cab to Axle (Pick Up Box Delete) 31.3 in. - - -
Cab height 70.9 in. 71.5 in. 71.2 in. 71.8 in.
Width - Excluding mirrors 73.3 in. 73.3 in. 73.3 in. 73.3 in.
Width - Including standard mirrors 85.8 in. 85.8 in. 85.8 in. 85.8 in.
Width - Standard Mirrors folded 77.8 in. 77.8 in. 77.8 in. 77.8 in.
Track width - Front 61.4 in. 61.4 in. 61.4 in. 61.4 in.
Track width - Rear 61.4 in. 61.4 in. 61.4 in. 61.4 in.
Overhang - Front 35.8 in. 35.8 in. 35.8 in. 35.8 in.
Overhang - Rear 48.2 in. 48.2 in. 48.2 in. 48.2 in.
Angle of approach 27.9 degrees 28.7 degrees 27.9 degrees 28.7 degrees
Angle of departure 25.2 degrees 25.4 degrees 25.2 degrees 25.4 degrees
Ramp breakover angle 22.7 degrees 21.5 degrees 22.7 degrees 21.5 degrees
Ground clearance 8.4 in. 8.9 in. 8.4 in. 8.9 in.
Open tailgate to ground 33.1 in. 33.8 in. 33.1 in. 33.8 in.
Front bumper to back of cab 132.1 in. 132.1 in. 143.8 in. 143.8 in.
Exterior Dimensions - Cargo Box
Cargo box style 6 ft. Styleside 5 ft. Styleside
Inside Length (at floor) 72.8 in. 61.0 in.
Width between wheelhouses 44.8 in. 44.8 in.
Inside Height 20.8 in. 20.8 in.
Cargo box volume 51.8 cu. Ft. 43.3 cu. Ft.

Interior

Interior Dimensions
Cab style SuperCab SuperCrew®
Head room - Front 39.8 in. 39.8 in.
Head room - Rear 35.9 in. 38.3 in.
Shoulder room - Front 56.6 in. 56.7 in.
Shoulder room - Rear 55.2 in. 56.3 in.
Hip room - Front 55.8 in. 55.8 in.
Hip room - Rear 55.3 in. 53.5 in.
Max Leg room - Front 43.1 in. 43.1 in.
Leg room - Rear 30.4 in. 34.5 in.

Capacities

Passengers and Fuel
Cab style SuperCab (Pick Up Box Delete) SuperCab SuperCab SuperCrew® SuperCrew®
Pickup box style 6 ft. Styleside 6 ft. Styleside 6 ft. Styleside 5 ft. Styleside 5 ft. Styleside
Wheelbase 126.8 in. 126.8 in. 126.8 in. 126.8 in. 126.8 in.
Drive system 4x2 4x2 4x4 4x2 4x4
Seating capacity 4 4 4 5 5
Fuel Capacity 18 gal. 18 gal. 18 gal. 18 gal. 18 gal.
Curb Weight
Cab style SuperCab (Pick Up Box Delete) SuperCab SuperCab SuperCrew® SuperCrew®
Pickup box style 6 ft. Styleside 6 ft. Styleside 6 ft. Styleside 5 ft. Styleside 5 ft. Styleside
Drive system 4x2 4x2 4x4 4x2 4x4
Base Curb Weight - 2.3L EcoBoost® 3922 lbs. 4145 lbs. 4232 lbs. 4354 lbs. 4441 lbs.

Engine

Engine Specifications
Engine type 2.3L EcoBoost®
Auto Start/Stop Technology Standard
Engine Control System PCM
Horsepower (SAE net @ rpm) 270
Torque (lb.-ft. @ rpm) 310
Compression ratio 10.0:1
Bore (in.) 3.45 in.
Stroke (in.) 3.7 in.
Displacement (cu. in.) 140 cu. In.
Fuel delivery Direct Injection
Recommended Fuel TBD
Oil Capacity 6.2 quarts
Fuel Consumption - 4x4 TBD
Transmission type Electronic 10-speed automatic
Transmission - Tow/Haul Standard
Transmission - SelectShift®  w/ Progressive Range Select Standard
Engine block material Aluminum
Cylinder head material Aluminum

Chassis

Chassis Specifications
Chassis Type Ranger
Front suspension Independent short long arm and tubular stabilizer bar
Rear suspension Hotchkiss-type non-independent live, leaf springs and shock absorbers
Front and rear shocks Gas-Pressurized
Brakes Four-wheel power disc brakes with four-sensor, four-channel antilock braking system and AdvanceTrac electronic stability control
Steering Electric power-assisted, rack-and-pinion

Towing

Maximum Conventional Towing Capabilities
SuperCab
Drive Type 4x2 (Pick Up Box Delete) 4x2 4x4
Engine with Automatic Transmission 2.3L EcoBoost®  I-4 2.3L EcoBoost®  I-4 2.3L EcoBoost® I-4
Wheelbase 126.8 in. 126.8 in. 126.8 in.
Axle Ratio 3.73 3.73 3.73
GCWR 12500 lbs. 12150 lbs. 12400 lbs.
Maximum Conventional Towing Capabilities 7500 lbs. 7500 lbs. 7500 lbs.
SuperCrew®
Drive Type 4x2 4x4
Engine with Automatic Transmission 2.3L EcoBoost®  I-4 2.3L EcoBoost®  I-4
Wheelbase 126.8 in. 126.8 in.
Axle Ratio 3.73 3.73
GCWR 12250 lbs. 12500 lbs.
Maximum Conventional Towing Capabilities 7500 lbs. 7500 lbs.

Payload

Maximum Payload Capabilities
SuperCab
Drive Type 4x2 (Pick Up Box Delete) 4x2 4x4
Wheelbase 126.8 in. 126.8 in. 126.8 in.
GVWR 6050 lbs. 6050 lbs. 6050 lbs.
Maximum Payload Capabilities 2080 lbs. 1860 lbs. 1650 lbs.
SuperCrew®
Drive Type 4x2 4x4
Wheelbase 126.8 in. 126.8 in.
GVWR 6050 lbs. 6050 lbs.
Maximum Payload Capabilities 1770 lbs. 1560 lbs.

Exterior Features

Appearance

Standard

  • Autolamp - automatic on/off headlamps
  • Bumper, Front: Steel, Frame-Mounted
  • Bumper, Front - Body-Color
  • Bumper, Rear: Steel
  • Bumper, Rear - Body-Color
  • Cargo lamp, integrated with center high-mounted stop lamp (CHMSL) - Halogen
  • Daytime Running Lamps - Halogen
  • Easy Fuel® capless fuel filler

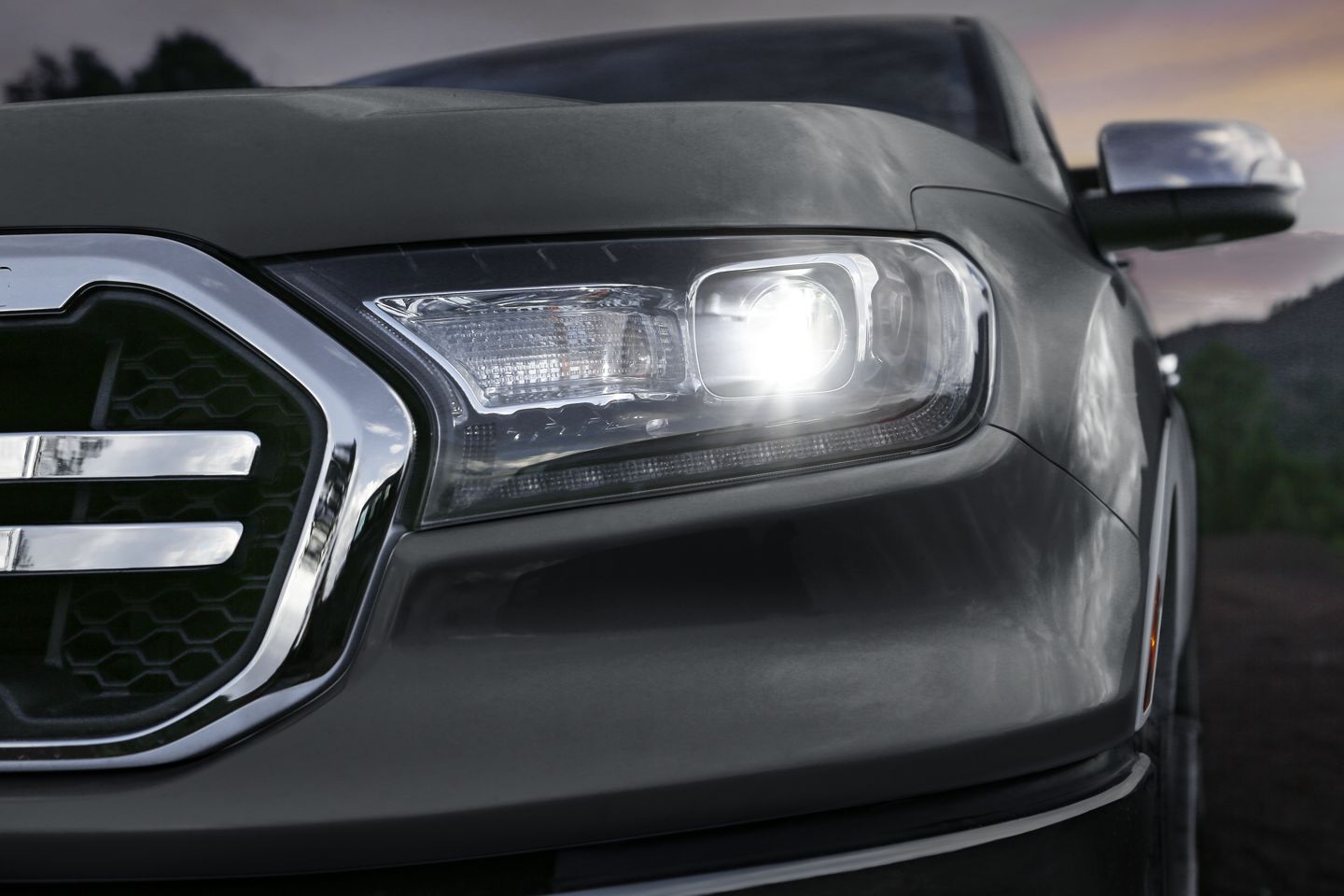

  • Headlamps - Halogen
  • Fog lamps - Halogen
  • Grille - Carbon Black Mesh with Silver Surround
  • Hooks - Front Tow, two (4x2)
  • Hooks - Front Tow, two (4x4)
  • Hooks - cargo box tie-down (6)
  • Handles, door and tailgate - Black
  • Exhaust - Single Rear
  • Side Mirrors - Manual Folding, Dual Power Glass
  • Side Mirrors, Skull Caps - Black
  • Tailgate - Power Locking
  • Wheel-lip Moldings - Body Color
  • Spare Tire Carrier - Rear underframe

Optional

  • Bumper, Front - Chrome
  • Bumper, Rear - Chrome
  • Grille - Black Mesh Grille with Black Surround
  • Grille - Unique Chrome
  • Grille - Black Grille with Magnetic Surround

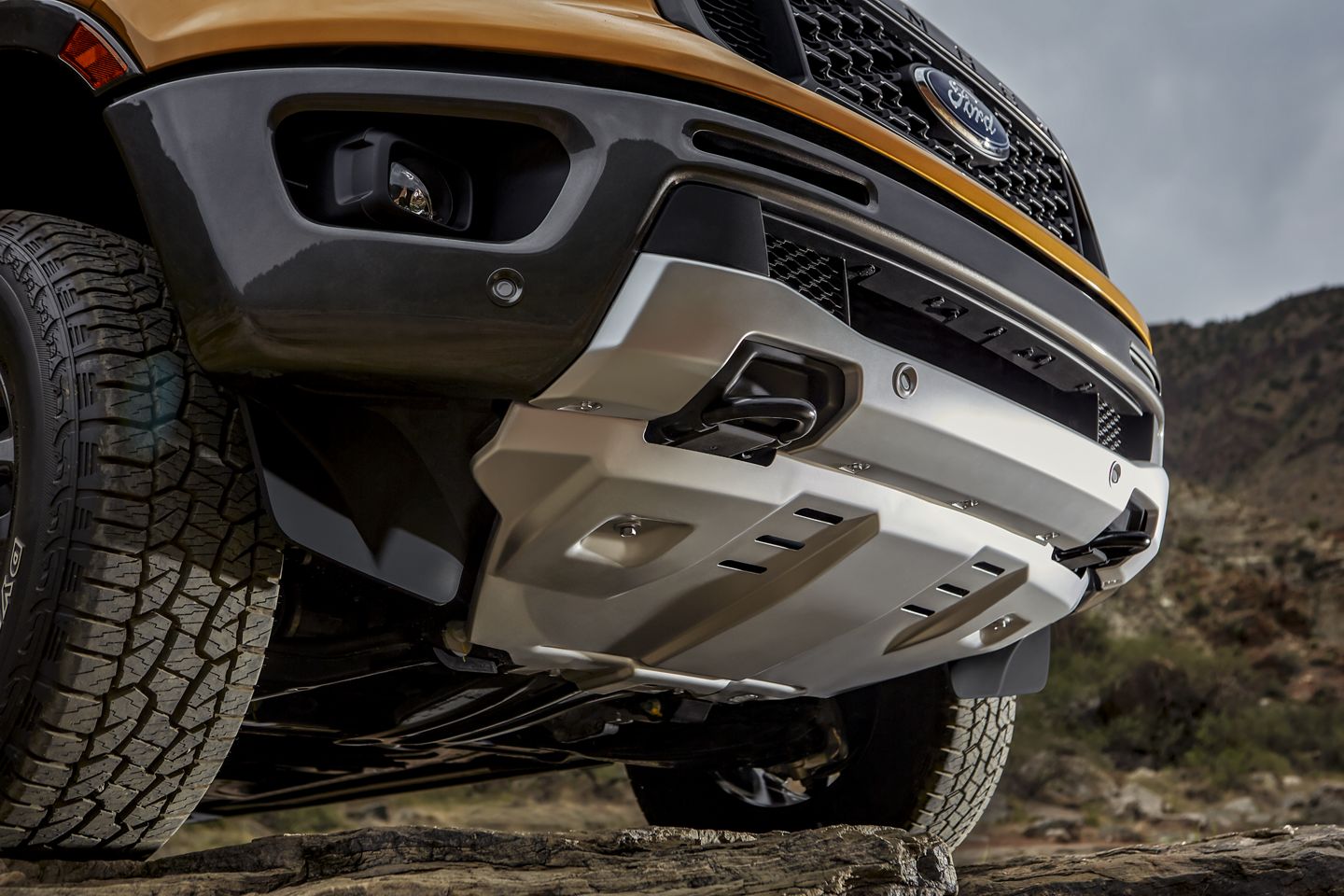

  • Bash Plate - Exposed Steel (4x4)
  • Handles, door and tailgate - Chrome
  • Exhaust - Chrome Tip
  • Running Boards, 5" Rectangular, Black
  • Running Boards, 5” Rectangular, Chrome
  • Wheel-lip Moldings - Magnetic

Windows & Glass

Standard

  • Window - Rear - Fixed glass with privacy tint and defroster
  • Windows - First-row - Power, one-touch up/down driver side
  • Windows - Second-row - Fixed (SuperCab)
  • Windows - Second-row - Power (SuperCrew® )

Optional

  • Window - Rear - Manual sliding glass with privacy tint and defroster

Climate

Standard

  • Manual air conditioning, Single Zone

Optional

  • Dual-zone Electronic Automatic Temperature Control

Comfort and Convenience

Standard

  • 110-volt Power Outlet - Rear Flow-Through Console
  • 4.2" Productivity Screen
  • Pre-Collision Assist with Automatic Emergency Braking
  • BLIS®  (Blind Spot Information System) with Cross-Traffic Alert
  • Automatic high beams
  • Color-coordinated carpet with carpeted floor mats
  • Locking Glove Box
  • Cruise control
  • Delayed accessory power
  • Dome light

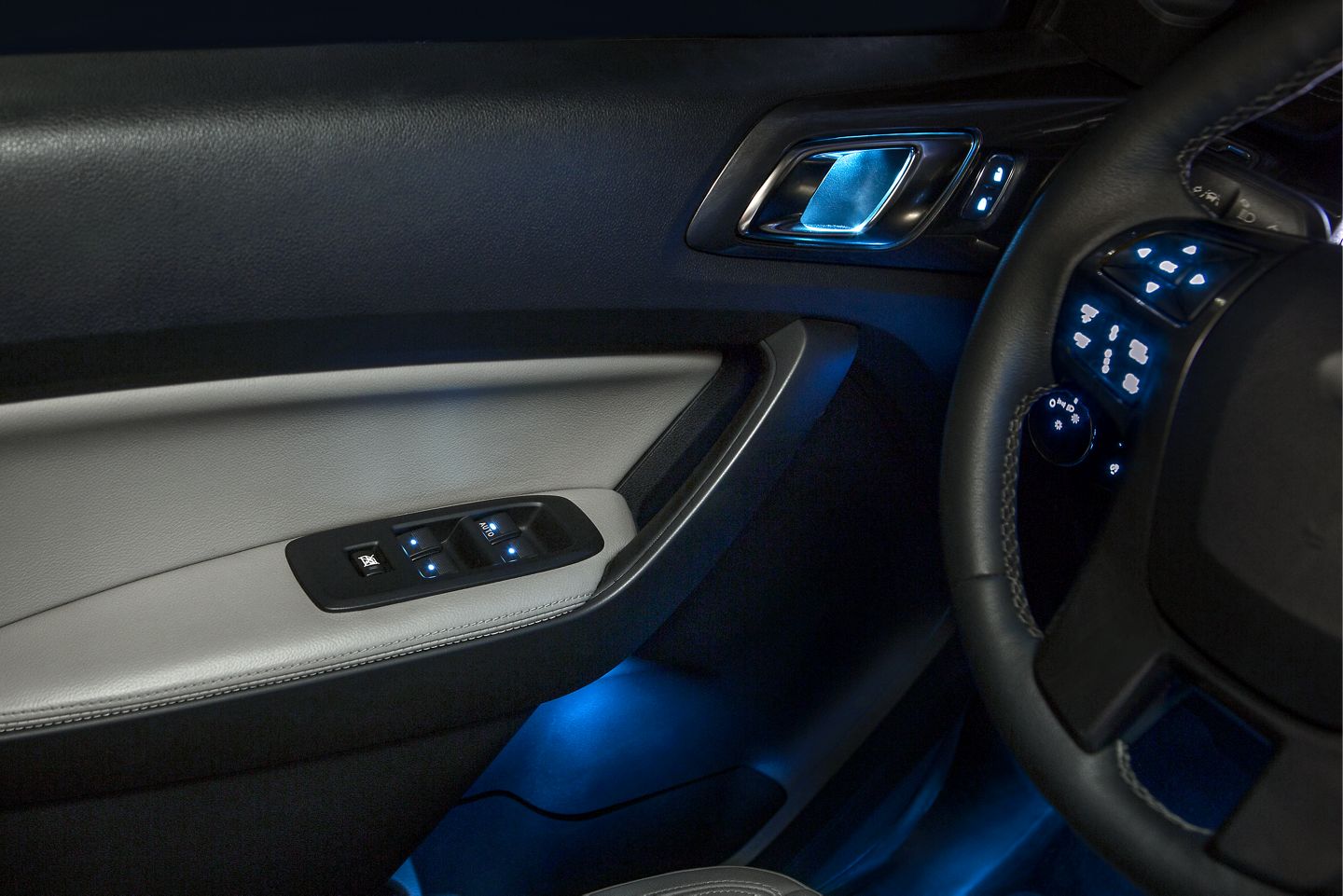

  • Fade-to-off interior lighting

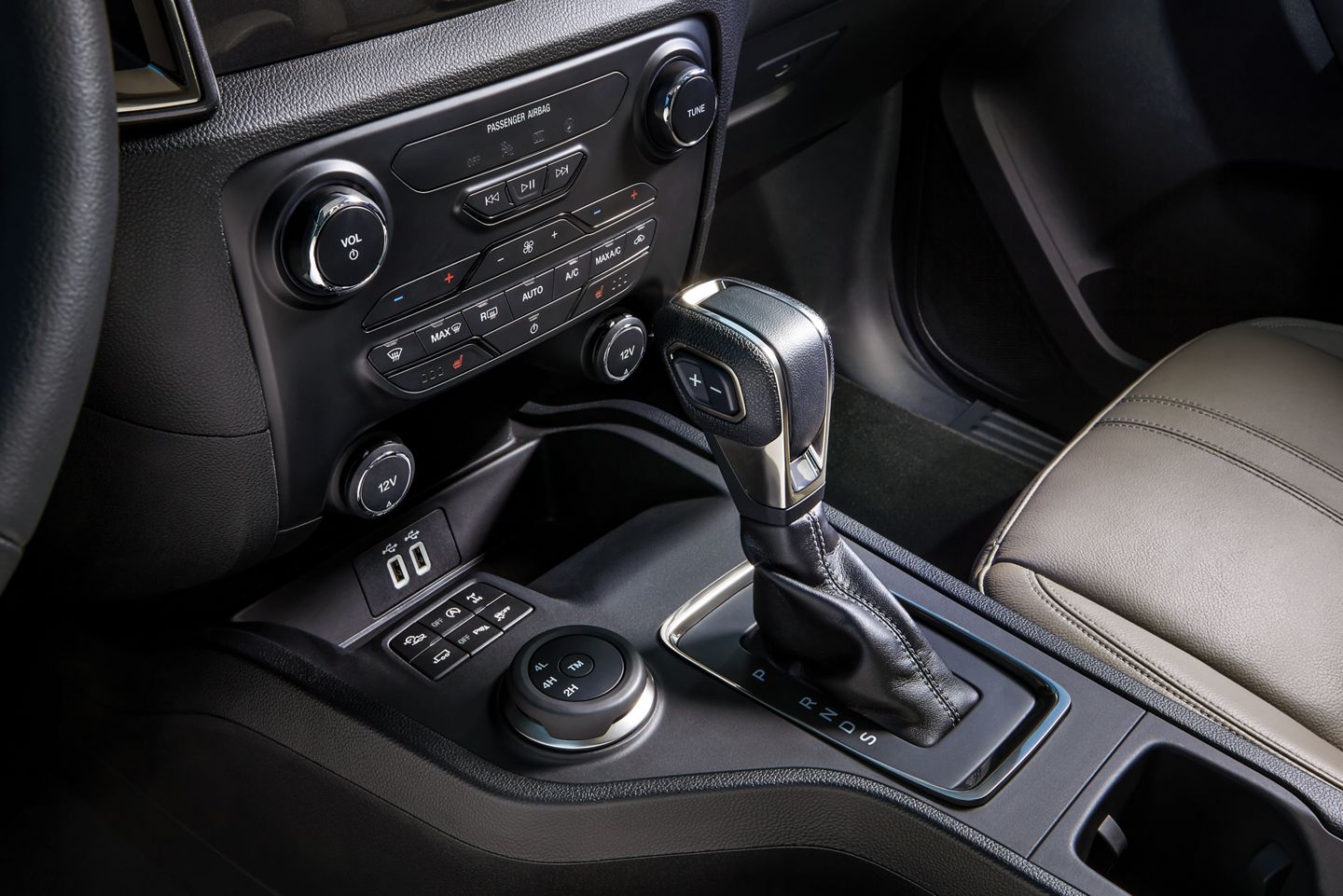

  • Flow-through center console with floor shifter
  • Grab handles (A-Pillar) - Front, Passenger-side
  • Horn, dual-note
  • Intermittent windshield wipers
  • Lane-Keeping System
  • MyKey®
  • Outside temperature display
  • Power door locks with flip key and integrated key transmitter keyless entry including auto-lock
  • Powerpoint, 12v - Front, Two (2)
  • Powerpoint, 12v - Rear
  • Rearview mirror, Day/Night
  • Forward and Reverse Sensing System
  • Steering wheel - Black urethane
  • Steering wheel, manual tilt/telescoping
  • Visors with driver- and passenger-side covered mirrors

Optional

  • Adaptive Cruise Control
  • Overhead console
  • Rearview mirror, Auto-dimming
  • Steering wheel - Leather-wrapped

Entertainment Systems

Standard

  • Speakers - 6 Audio Speakers
  • FordPass Connect™ with 4G LTE Wi-Fi hotspot

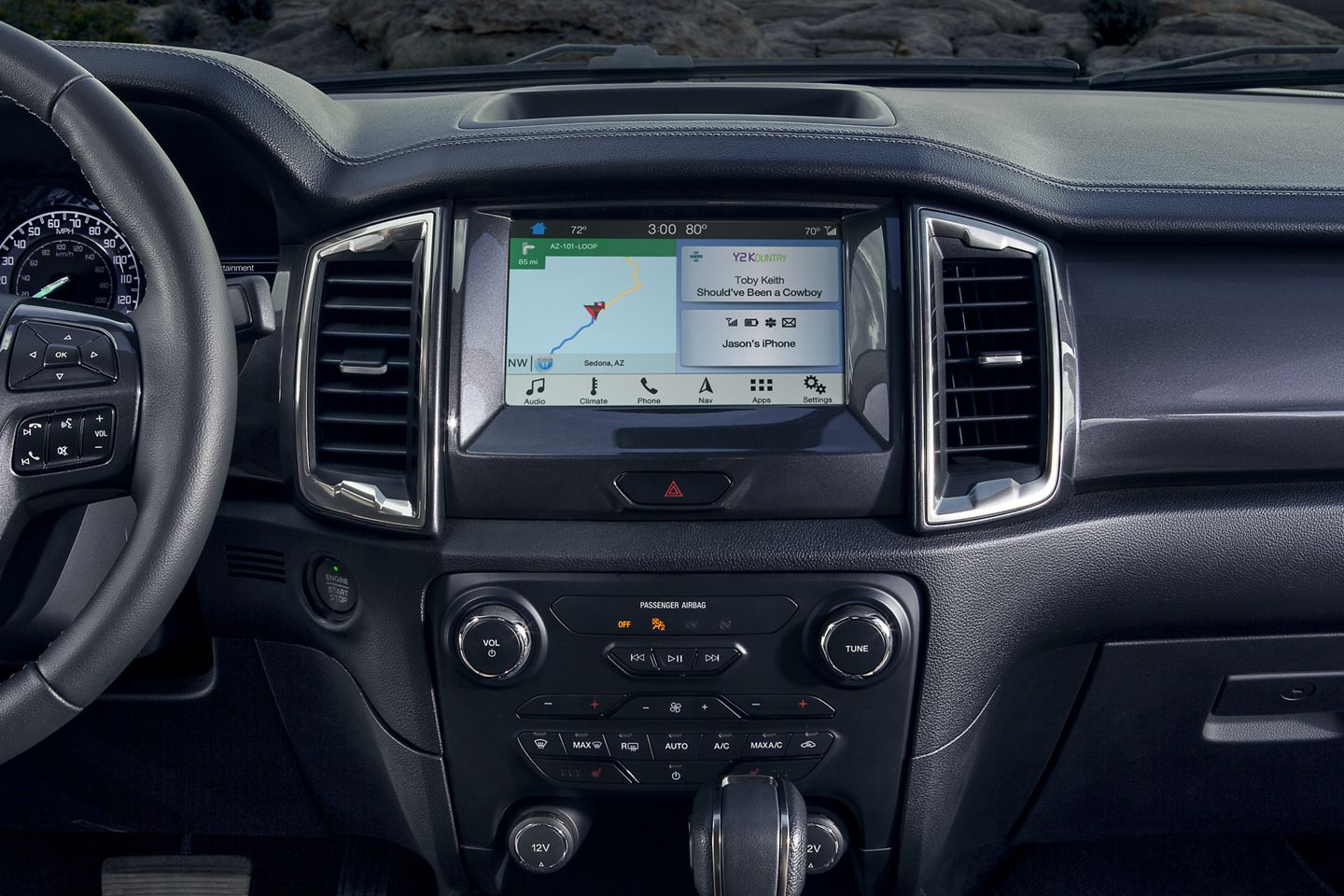

  • SYNC®
  • 911 Assist®
  • Applink®
  • Smart-Charging USB port - one (1)

Optional

  • SiriusXM® Satellite Radio
  • SYNC® 3
  • Voice-activated Navigation with SiriusXM Traffic and Travel Link®

Seating

Standard

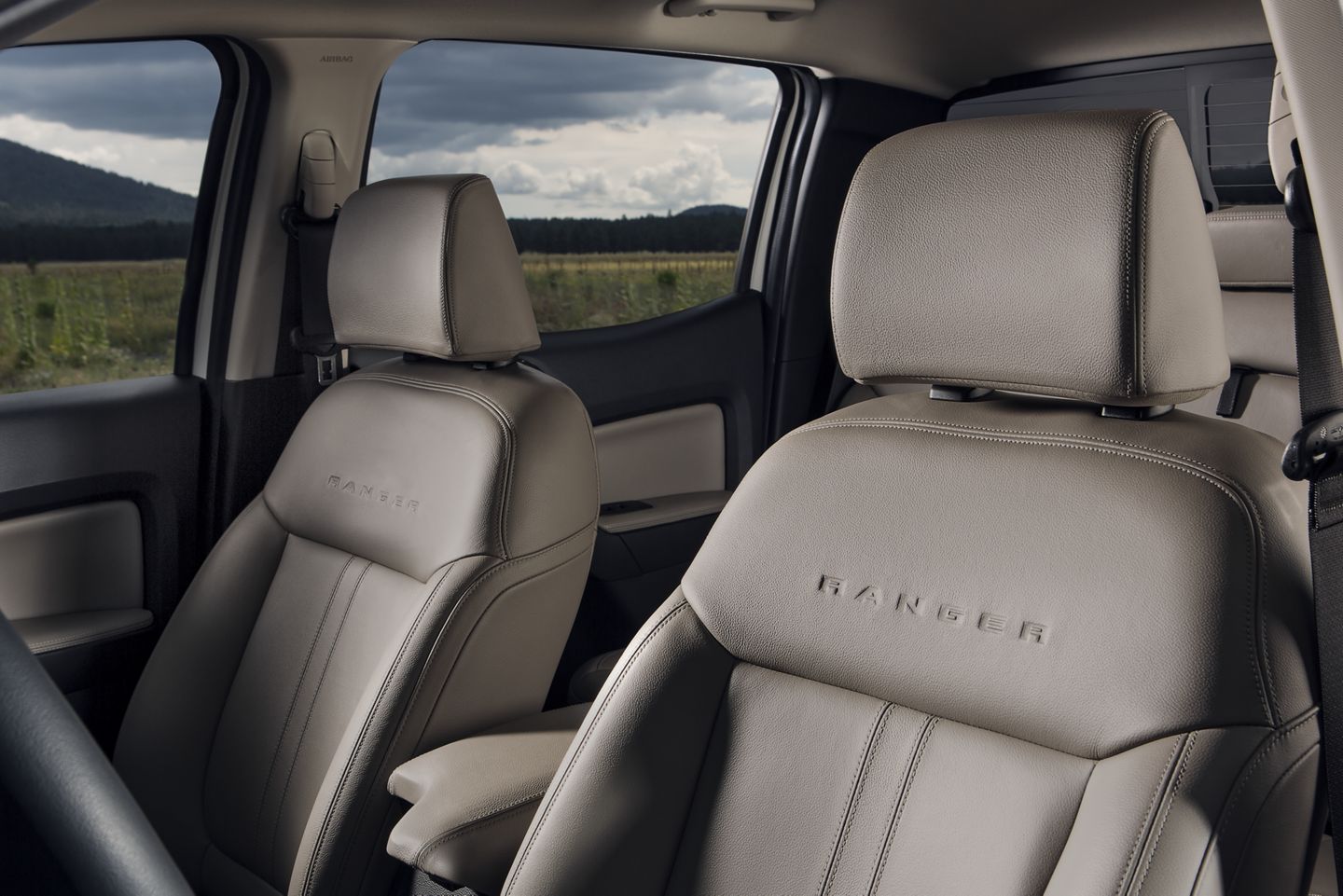

  • Seats - Front - Bucket seats with center flow-through console, Cloth
  • Seats - Front - 4-way manual driver with manual lumbar, 4-way manual passenger with manual lumbar
  • Seats - Rear - Dual Fold Cloth Bench with removable cushions and underseat storage (SuperCab)

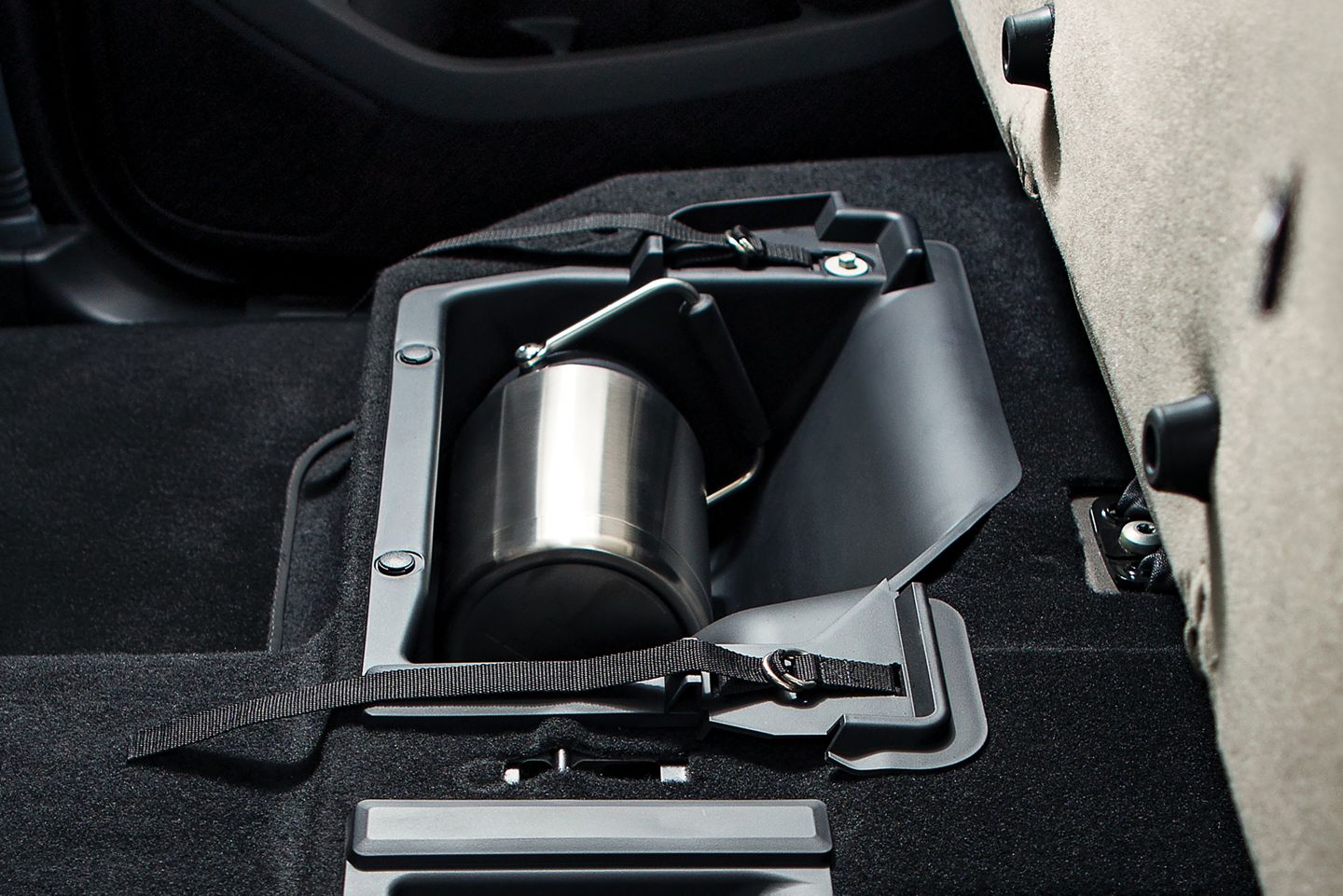

  • Seats - Rear - flip up bench with underseat storage (SuperCrew®)

Optional

  • Seats - Front - 8-way power driver and passenger heated seats with power lumbar

Packages

Standard

  • Ford Co-Pilot360™ Technology

Optional

  • Chrome Appearance Package
  • Sport Appearance Package
  • Bed Utility Package
  • Technology Package
  • FX4 Off-Road Package (4x4 only)
  • Trailer Tow Package
  • Black Appearance Package

Standard Features

Standard

  • Equipment Group 300A

Value Packages

Optional

  • Equipment Group 301A
  • Equipment Group 302A

Power

Standard

  • 2.3L EcoBoost® Engine
  • Auto Start-Stop Technology
  • Electronic 10-speed Transmission with Tow/Haul Mode
  • SelectShift® Automatic Transmission
  • Fuel Tank - 18-gallon

Handling

Standard

  • 4x2
  • Electronic-Shift-On-the-Fly (ESOF) with Neutral Towing Capability (4x4 only)
  • Axle, Front - Independent Front Suspension
  • Brakes - 4-Wheel Disc with ABS
  • Electronic Power-Assist Steering (EPAS)
  • Fully boxed frame
  • Suspension - Front - Independent short long arm and tubular stabilizer bar
  • Suspension - Rear - Hotchkiss-type non-independent live, leaf springs
  • Shock Absorbers, Front - Gas
  • Shock Absorbers, Rear - Gas
  • Springs, Front - Coil
  • Springs, Rear - Leaf, two-stage linear rate
  • Trailer Sway Control
  • Trailer Towing - 4-pin wiring, ball mounting provisions in rear bumper

Optional

  • 4x4
  • Engine Block Heater
  • Electronic-Locking Rear Differential
  • Terrain Management System™ with four selectable drive modes
  • Trail Control™ (Contains Hill Descent Control™ )

Wheels & Tires

Standard

  • 17-inch Silver-painted Aluminum Wheel
  • 255/65R17 BSW all-season tires (4x2)

Optional

  • 17-inch Chrome-like PDV Wheel
  • 17-inch Magnetic-painted Aluminum Wheel
  • 18-inch Chrome-like PDV Wheel
  • 18-inch Machined Aluminum Wheel w/Magnetic Pockets
  • 255/65R17 BSW all-terrain tires (4x4)
  • 265/65R17 OWL all-terrain tires (4x4)
  • LT265/65R17 OWL all-terrain tires (4x4)
  • 265/60R18 BSW all-terrain tires (4x4)
  • 265/60R18 OWL all-terrain tires (4x4)

Safety

Standard

  • Rear View Camera
  • AdvanceTrac® with Roll Stability Control™ (RSC® )
  • Airbags - Front, Driver and passenger
  • Airbags - Front, Driver and passenger seat-mounted side
  • Airbags - Safety Canopy® side curtains
  • Curve Control
  • Four-Wheel Anti-Lock Brakes
  • Child Seat Tether Anchors
  • Safety belts - Active Restraint System (ARS), three-point manual lap/shoulder belts with height adjusters, pretensioners and energy management retractors on outside front positions
  • Child-proof rear-door-locks (SuperCrew® )
  • Tire Pressure Monitoring System (TPMS)

Security

Standard

  • Perimeter anti-theft alarm
  • Remote Keyless Entry System
  • SecuriLock® passive anti-theft system
  • SOS Post-Crash Alert System™
  • Spare tire and wheel lock

Optional

  • Remote Start System

Exterior

Optional

  • Spray-In Bedliner
  • Splash Guards/Mud Flaps - Front and Rear
  • SecuriCode™  keyless entry keypad, driver's side

Factory Invoiced

Optional

  • Tonneau Pickup Box Cover - Hard
  • Tonneau Pickup Box Cover - Soft folding
  • Tonneau Pickup Box Cover - Retractable
  • Floor Liner - Tray Style
  • Aluminum Crossbed Toolbox - Black, by Weather Guard (Defender Series)
  • Premium Aluminum Crossbed Storage Toolbox - Bright, by Weather Guard (model # 131-0-1)
Loading...
Related Vehicle
All New
  • 2018
Transit
All New
  • 2019
Expedition
All New
  • 2018
Explorer
All New
  • 2018
Everest
All New
  • 2018
Escape
All New
  • 2018
EcoSport
All New
  • 2018
  • Automatic 5-Speed
FIGO
Description
  • Year 2019
  • Make Ford
  • Model XLT
  • Condition All New
Inquiry

Inquiry
